304 Stainless Steel Plate
Product Description
304 stainless steel highly stands out in terms of corrosion resistance, heat resistance, low temperature strength and mechanical properties, being one of the most widely used types of stainless steel. In addition, it has exceptional hot-workability such as stamping and bending, without leaving heat treatment hardening phenomenon.

304 stainless steel plate is one of the most popular steel plates across the globe for a mix of its favorable characteristics. 304 stainless steel is mainly composed of iron, chromium and nickel. This combination leads to outstanding oxidation resistance and corrosion resistance of 304 stainless steel plates. 304 stainless steel is a versatile stainless steel material with stronger anti-rust properties than 200 series stainless steel materials. It is also better in terms of high temperature resistance. The 304 stainless steel plate has a smooth surface, high plasticity, toughness and mechanical strength, and is resistant to corrosion by acids, alkaline gases, solutions and other media. Due to its good versatility and relatively low cost, 304 stainless steel plate is widely used in food processing equipment, building materials, automobile parts and other fields.


Product Parameters

Product Name304 Stainless Steel Plate
TypePlate
Thickness0.3mm-200mm
Length2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of Application

Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts,

 food and beverage packaging,Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.

CertificateISO, SGS, BV, etc.
Production TechnologyHot Rolling, Cold Rolling
Edge ProcessingEdging, Trimming



Chemical Composition

CSiMnCrNiSP
≤ 0.08≤1.0≤ 2.018.0~20.08.0~10.5≤ 0.03≤ 0.035



Mechanical Properties

Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
≥ 520≥ 205≥ 40≤ 187HB ;≤ 90HRB;≤ 200HV



Physical Performance

Density(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10-6/°C)Coefficient of Thermal Conductivity(W/m*K)Resistivity(ΜΩ. cm)
8.0319316.916.272

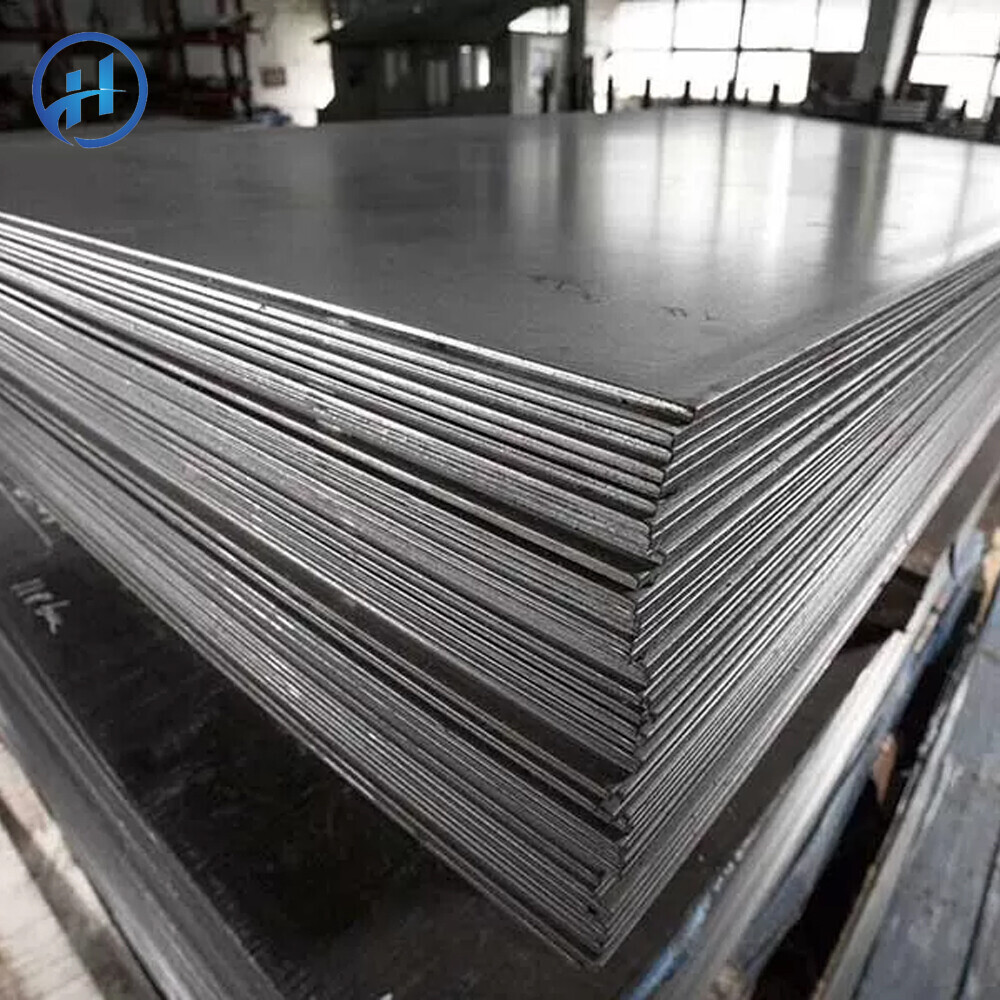

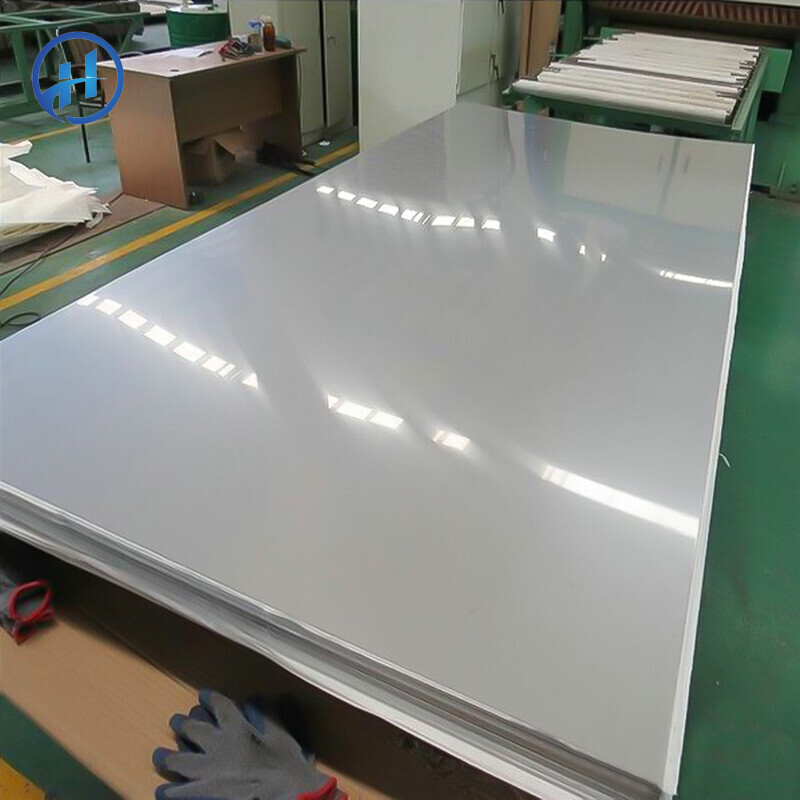

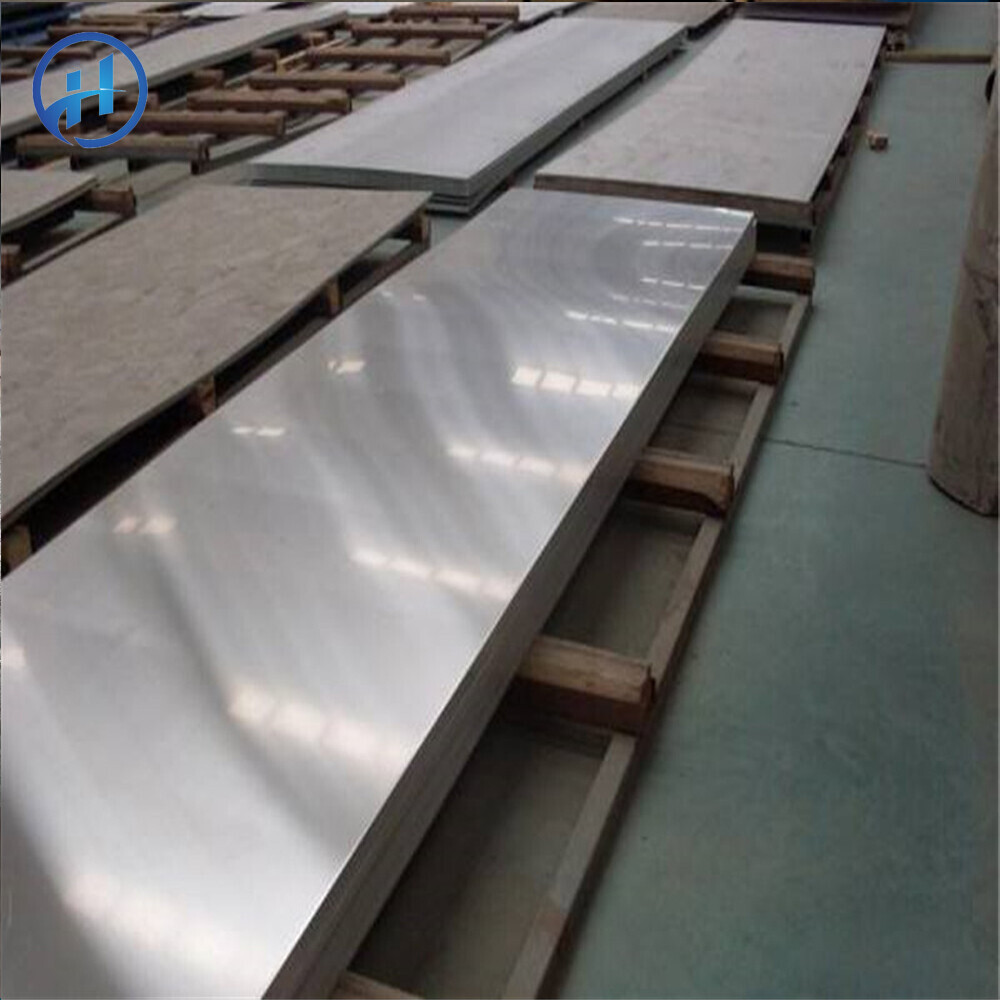

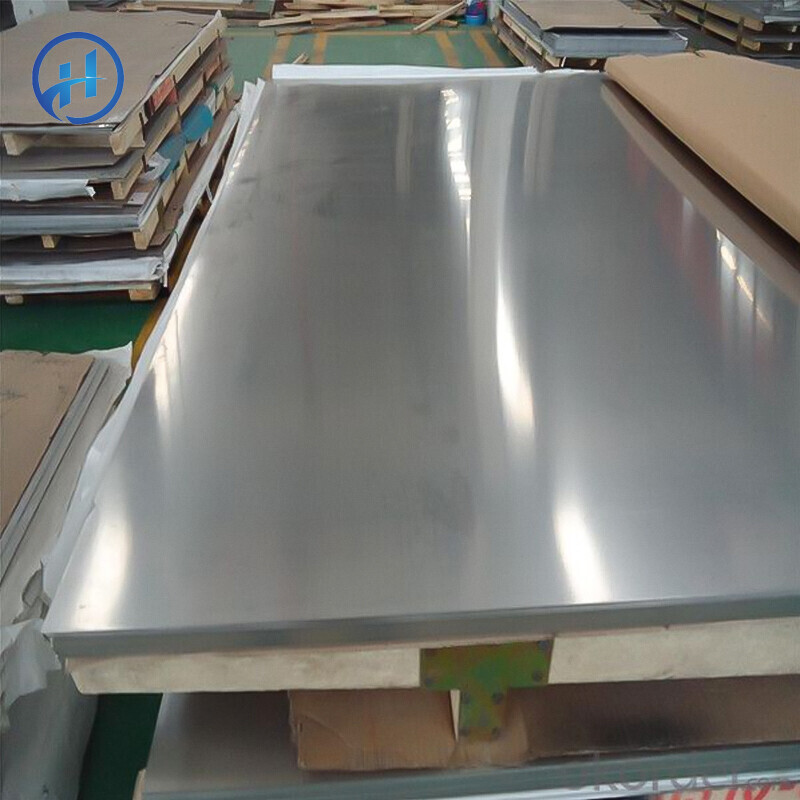

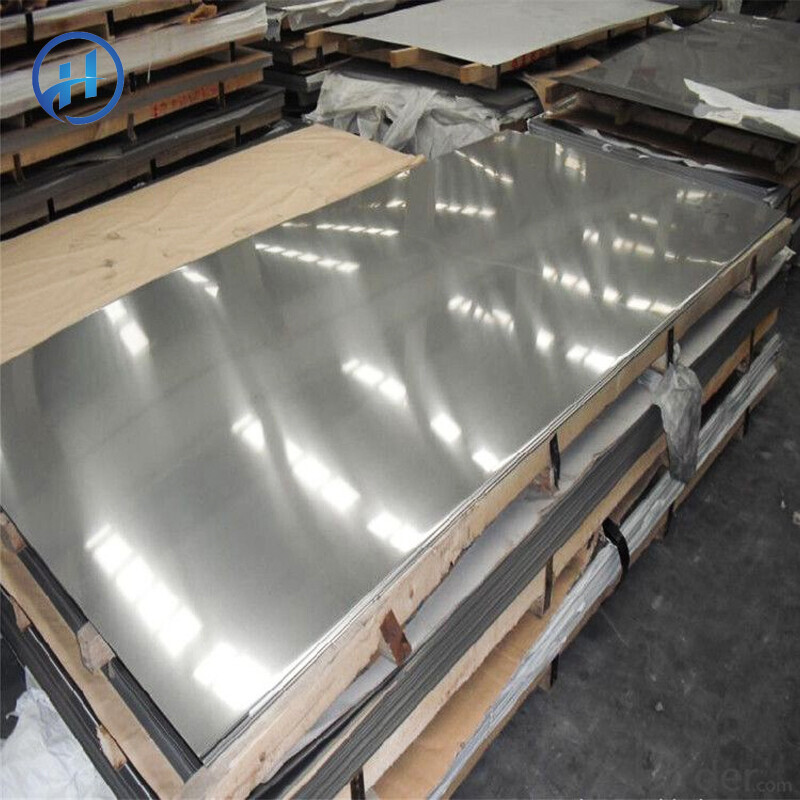

Product Show
