304L Stainless Steel Plate
Product Description
304L stainless steel is remarkably similar to 304 stainless steel in their chemical composition. but there is one key difference. In grade 304 stainless steel, the maximum carbon content is set at 0.08%, whereas grade 304L stainless steel has a maximum carbon content of 0.03%. This is why the “L” in 304L can be interpreted as extra-low carbon.

304L stainless steel plate is a variant of 304 stainless steel plate with a lower carbon content and is used where welding is required. The lower carbon content minimizes the precipitation of carbides in the heat-affected zone close to the weld, and the precipitation of carbides may cause intergranular corrosion of stainless steel in certain environments. Basically, using 304L eliminates the need to anneal weld joints prior to using the completed metal form, saving time and effort. Generally speaking, both 304 and 304L stainless steel plates can be used for many of the same applications. The differences are often minor enough that one isn’t considered massively more useful over the other. 304L stainless steel plate is widely used in fields such as food processing equipment, building materials, automobile parts.


Product Parameters

Product Name304L Stainless Steel Plate
TypePlate
Thickness0.3mm-200mm
Length2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of Application

Widely used in high temperature and electrical industry, medical equipment construction, chemical,

 food industry, agriculture and ship parts, food and beverage packaging,Kitchen supplies,

trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.

CertificateISO, SGS, BV, etc.
Production TechnologyHot Rolling, Cold Rolling
Edge ProcessingEdging, Trimming



Chemical Composition

CSiMnCrNiSP
≤ 0.03≤1.0≤ 2.018.0~20.08.0~12.0≤ 0.03≤ 0.035



Mechanical Properties

Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
≥ 520≥ 205≥ 40≤ 187HB ;≤ 90HRB;≤ 200HV



Physical Performance

Density(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10-6/°C)Coefficient of Thermal Conductivity(W/m*K)Resistivity(ΜΩ. cm)
8.0319316.916.272

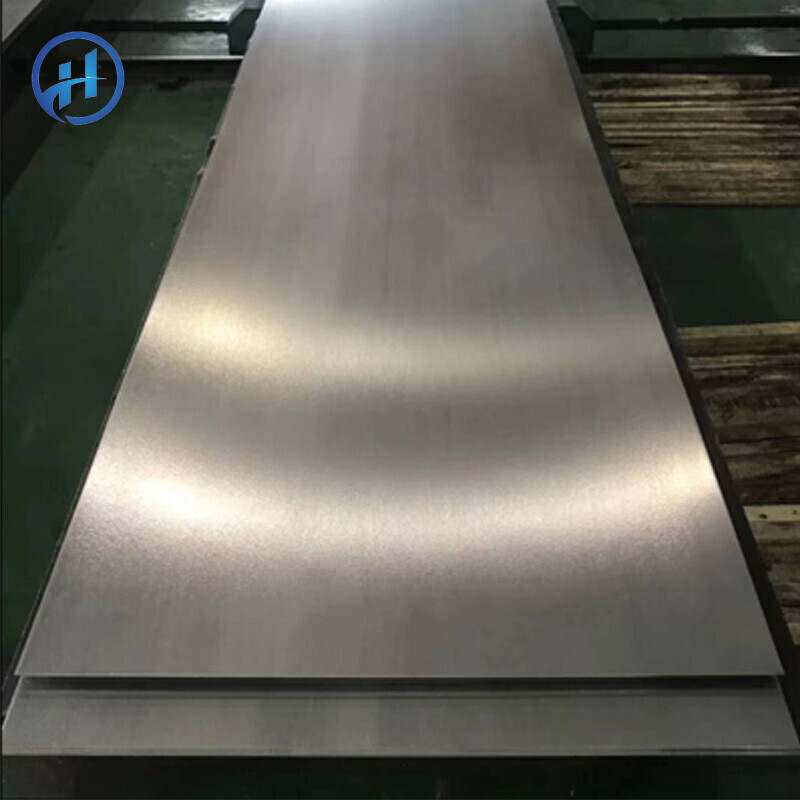

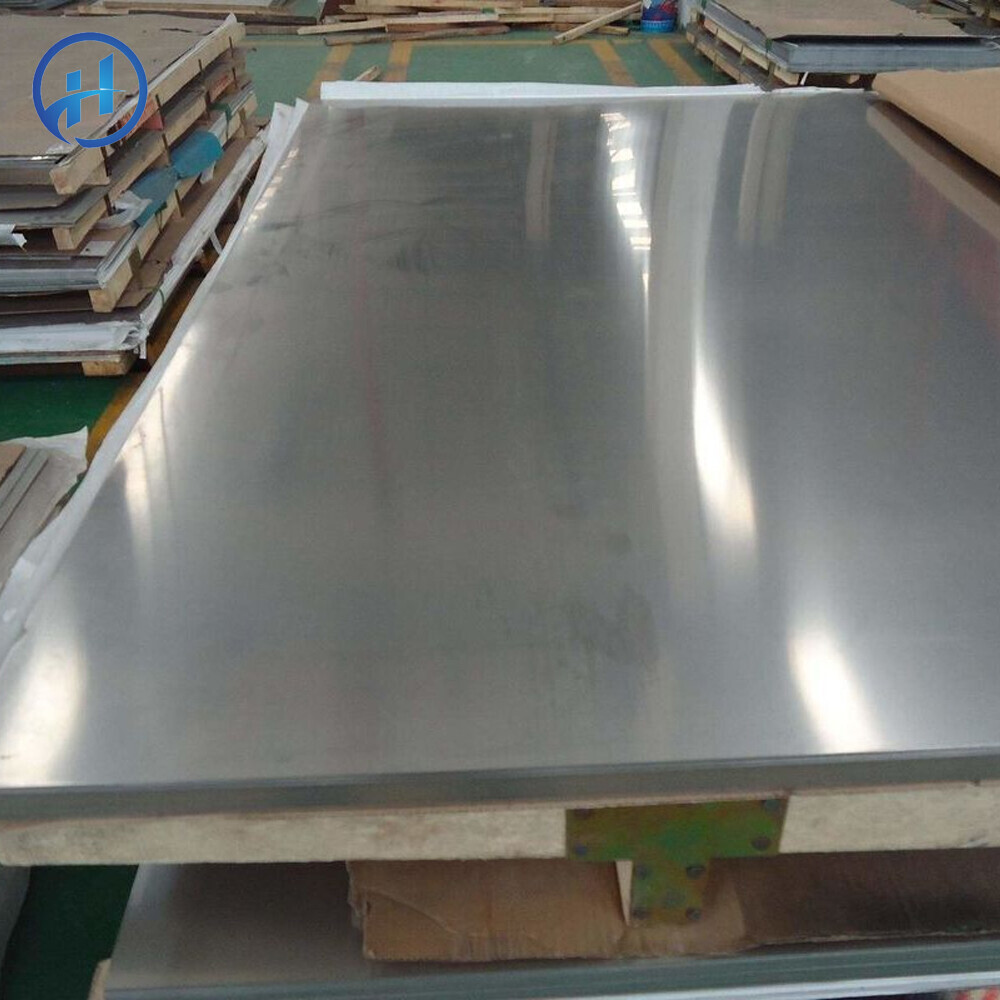

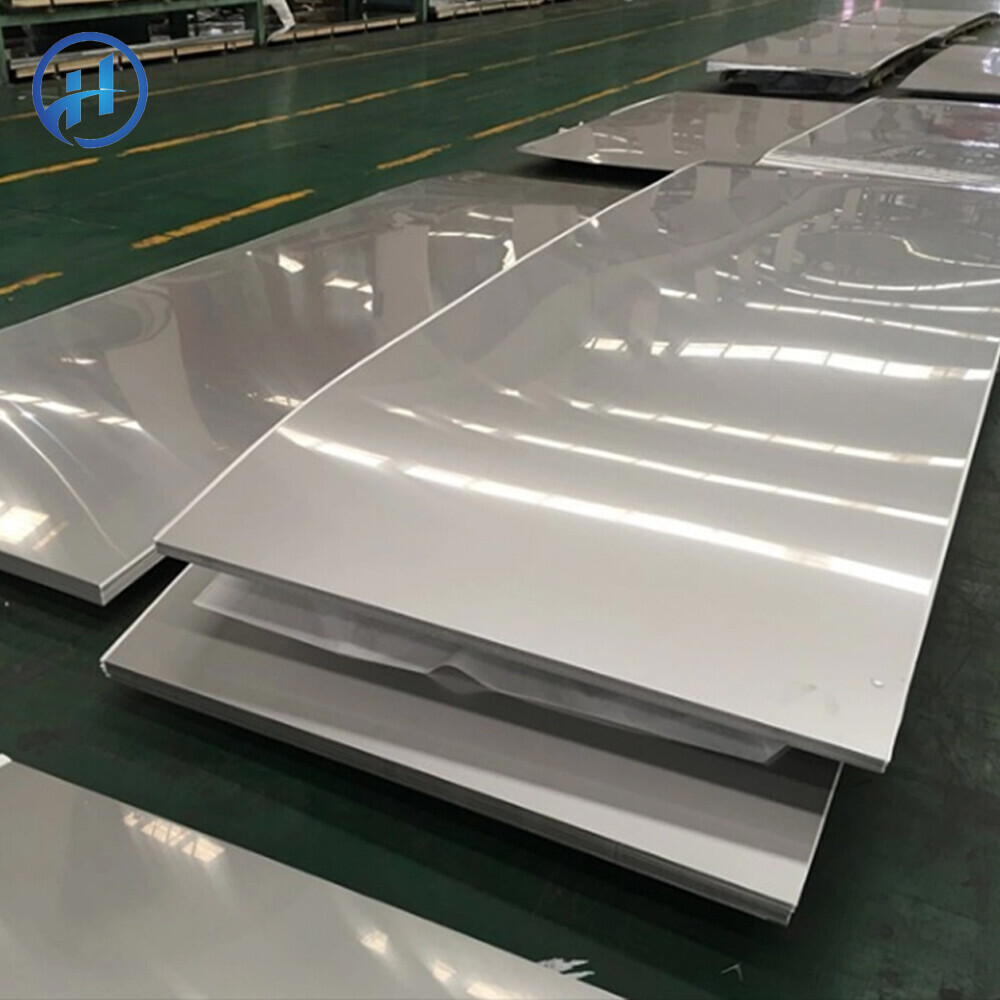

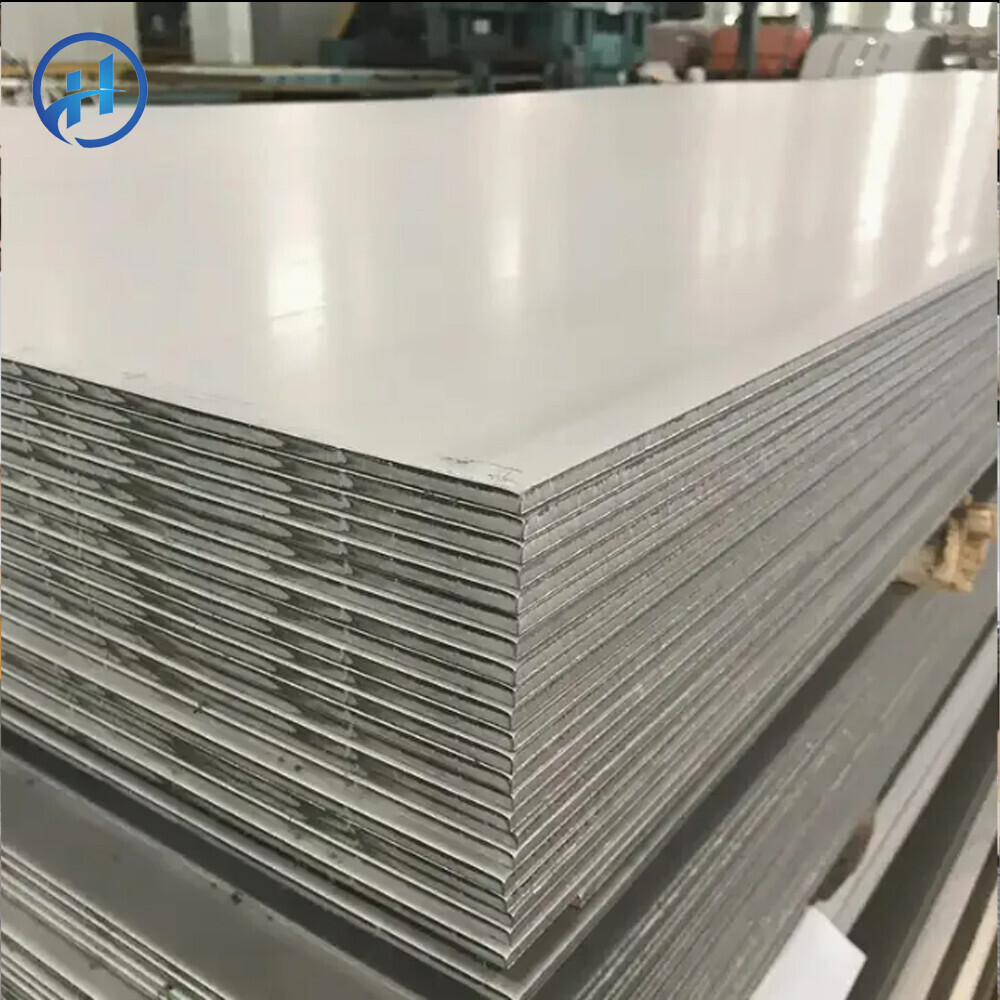

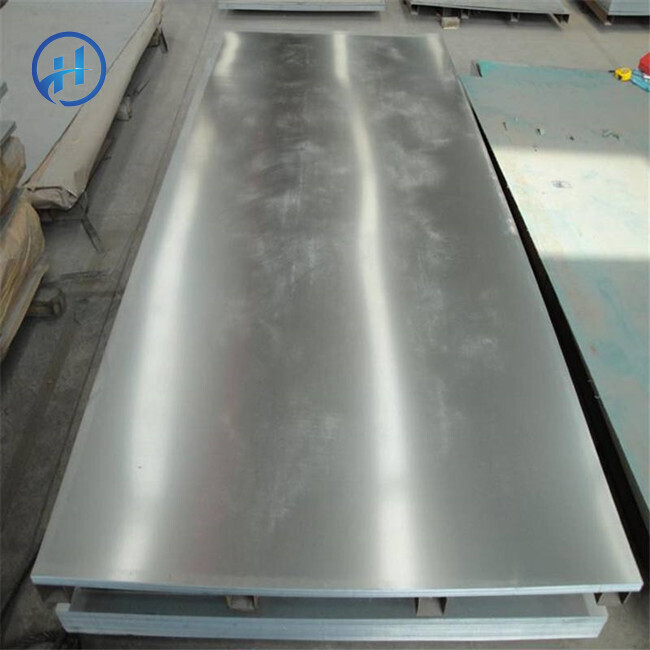

Product Show
