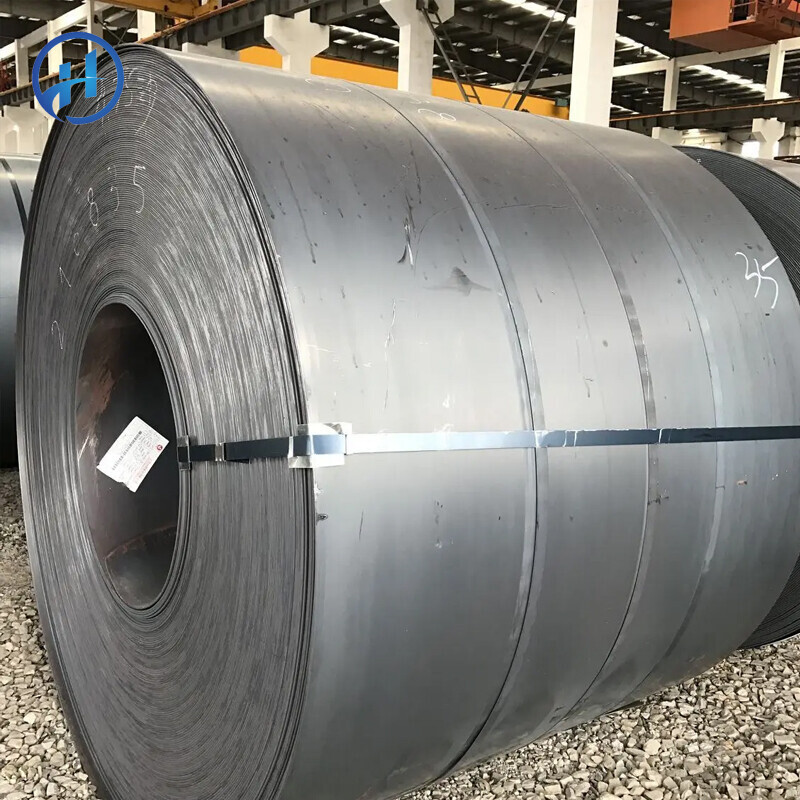

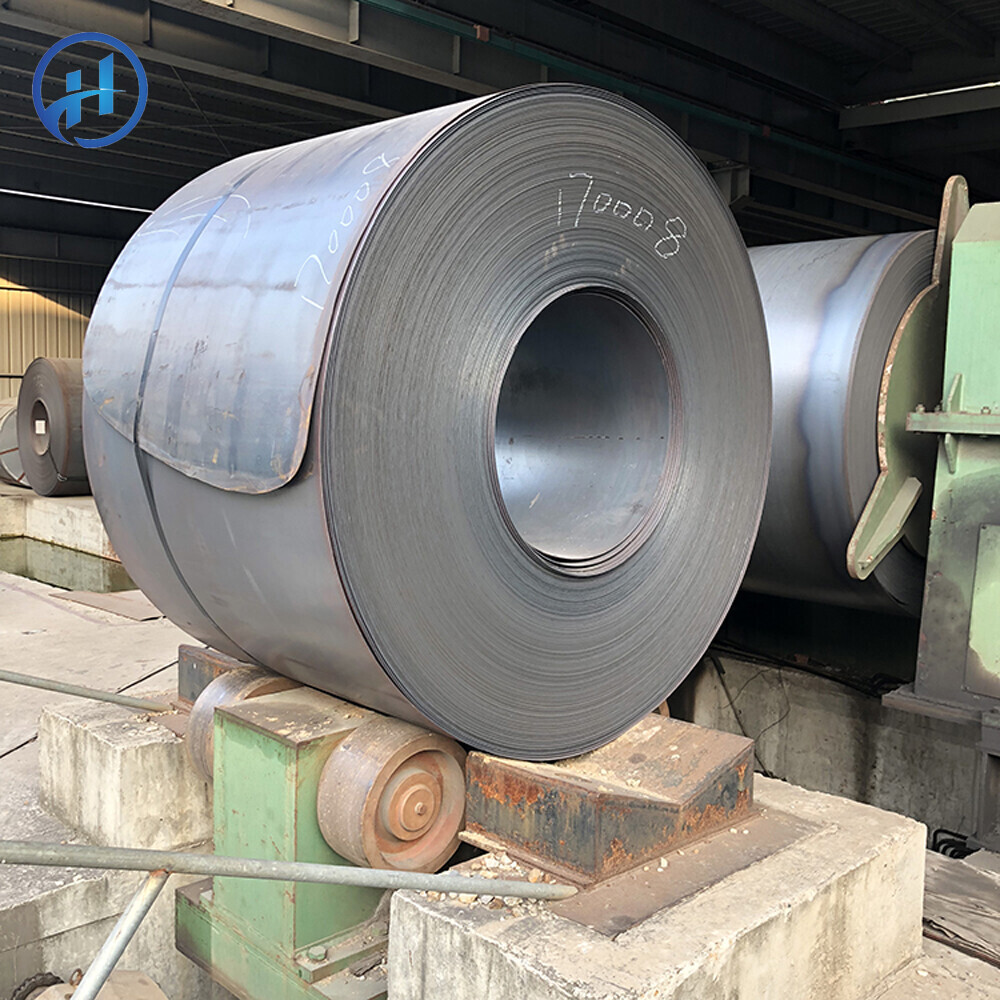

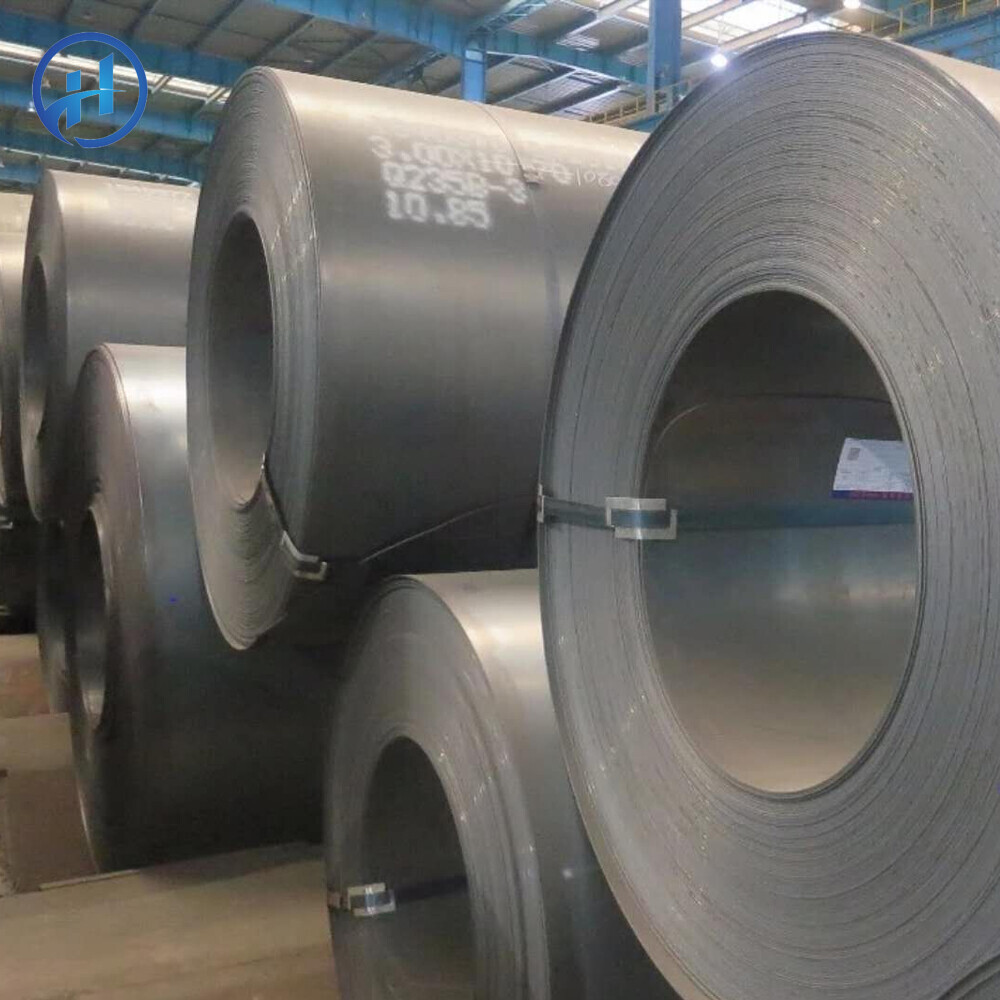

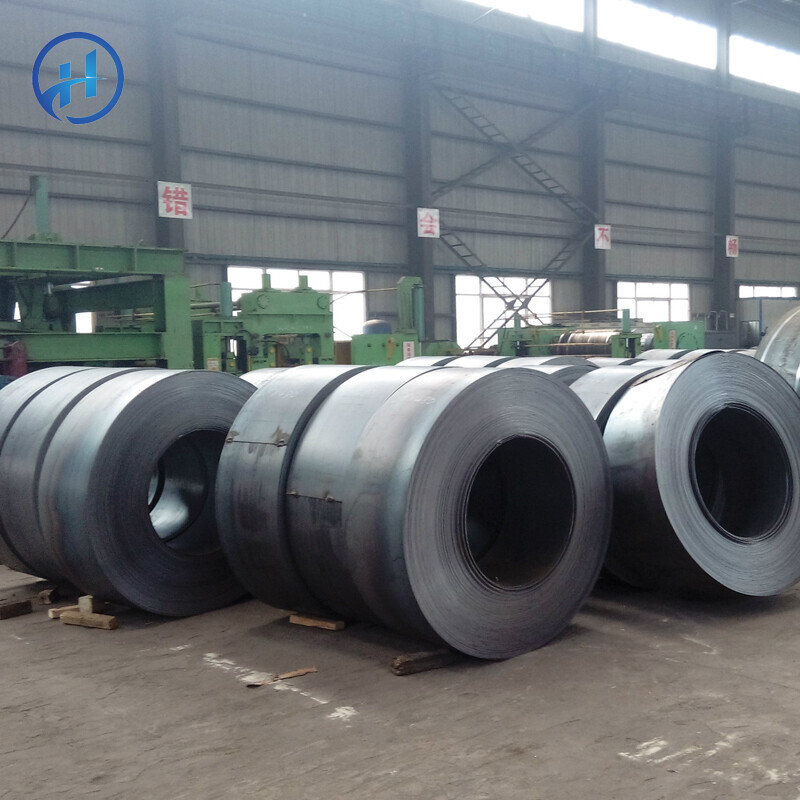

A633 Carbon Steel Coil
Product Description
A633 steel has four grades of A, C, D, and E. The thickness of grade C can reach 4 inches and the thickness of grade E can reach 6 inches. ASTM A633 steel specification is based on the standard specification for standardized high-strength low-alloy structural steel coil, which requires high notch toughness under low temperature conditions.

A633 carbon steel coil is a normalized high-strength low-alloy structural steel coil used for welded, riveted or bolted structures. This material is suitable for use at lower ambient temperatures where the required notch toughness is better than that expected for rolled materials of comparable strength. The material has good austenite grain size and should be normalized by heat treatment. Its chemical composition should be determined by thermal analysis. Tensile testing should also be performed. A633 steel coils are usually used in manufacturing plants, general construction and various types of engineering machinery, such as drilling rigs, electric shovels, electric wheel dump trucks, mining trucks, excavators, loaders, bulldozers, and various cranes for mining and various engineering constructions.


Product Parameters

Product NameA633 Carbon Steel Coil
Production ProcessHot Rolling, Cold Rolling
Material StandardsAISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width45mm-2200mm
LengthCustom Size
ThicknessHot Rolling: 2.75mm-100mm
Cold Rolling: 0.2mm-3mm
Delivery ConditionsRolling, Annealing, Quenching, Tempered or Standard
Surface ProcessOrdinary, Wire Drawing, Laminated Film



Chemical Composition

A633CMnPSSiVNb
Grade A≤ 0.181.00-0.350.0350.040.15-0.50-≤ 0.05
Grade C≤ 0.200.15-0.500.0350.040.15-0.50-0.01-0.05
Grade D≤ 0.200.70-1.350.0350.040.15-0.50--
Grade E≤ 0.221.15-1.500.0350.040.15-0.500.04-0.11-



Mechanical Properties

A633Yield StrengthTensile StrengthElongation 200 mm, min %Elongation 50 mm, min %
65 mm65-100 mm100-150 mm65 mm65-100 mm100-150 mm
Grade A290290-430-570430-570-1823
Grade C&D345315-485-620450-590-1823
Grade E415415380550-690550-690515-6551823



Physical Performance

Physical PerformanceMetricImperial
Density7.75 g/cc0.280 lb/in³



Scope of Application

ASTM A633 steel plate is mainly used in petroleum, chemical, power station, boiler and other industries, for the production of reactors, heat exchangers, separators, spherical tanks, oil and gas pipelines, liquefied gas tanks, shell nuclear reactor pressure, boiler drums, liquefied petroleum gas cylinders, high pressure water pipes, water turbines and other equipment and components.
