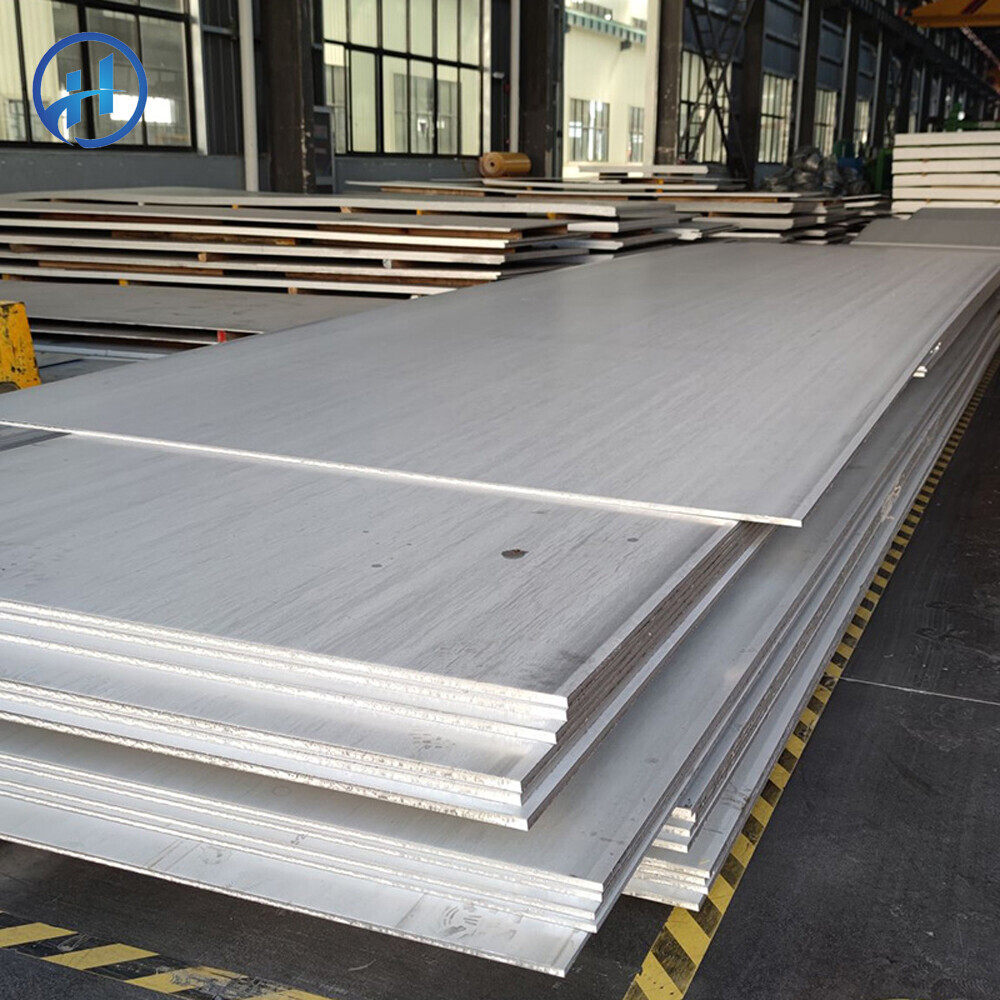

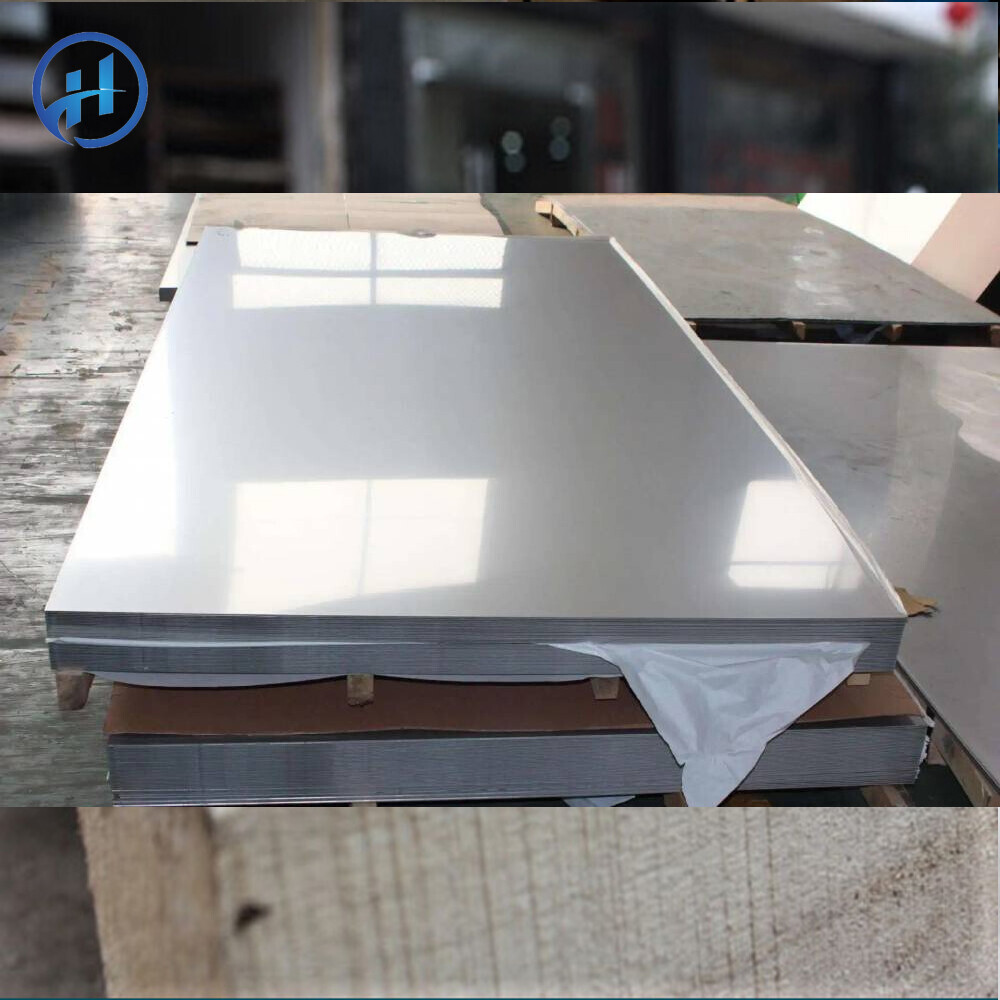

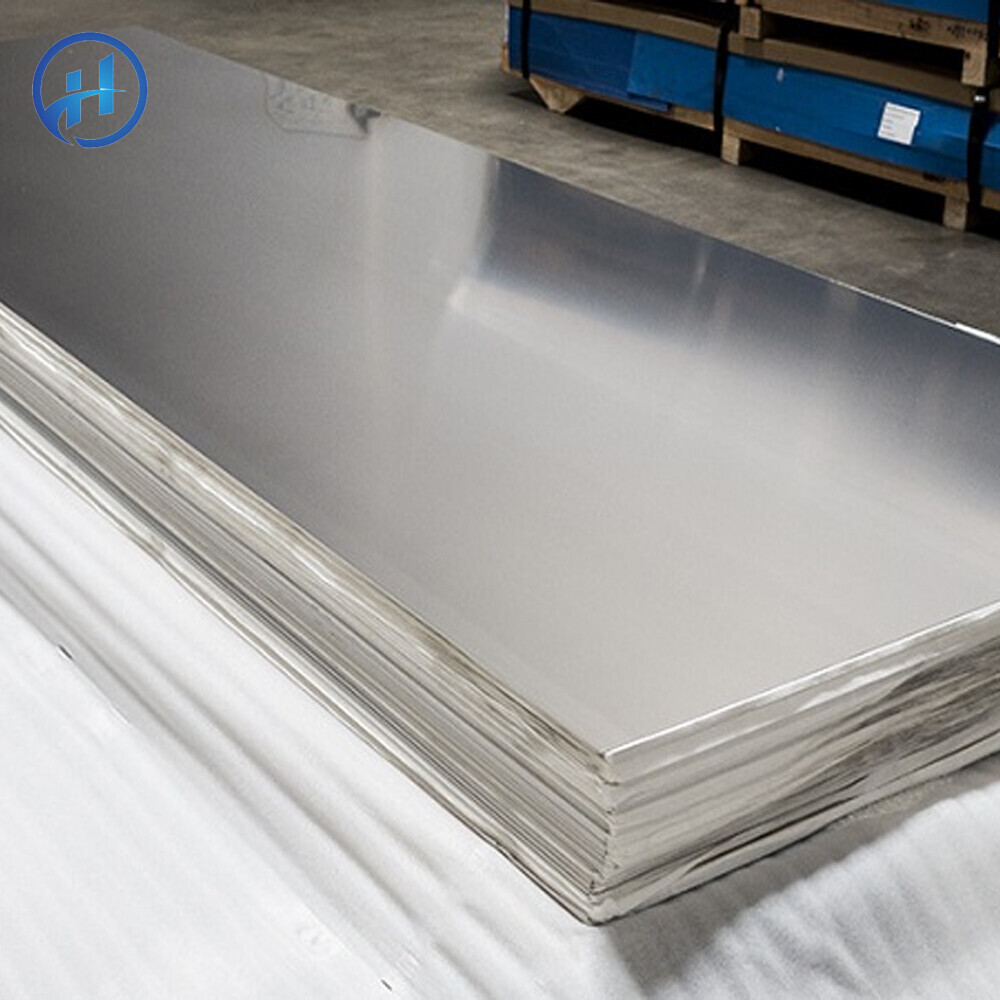

302 Stainless Steel Plate
Product Description
302 stainless steel is an austenitic stainless steel that has 18% chromium and 8% nickel. Its chemical composition relies heavily on reasonable alloy design to achieve a series of excellent properties.

302 stainless steel has excellent plasticity and toughness and is suitable for various processing techniques, including cold working, so it can be manufactured in different shapes. And 302 stainless steel has good corrosion resistance, especially excellent in media such as oxidizing acids, atmosphere, steam and water. However, 302 stainless steel is not suitable for intergranular corrosion environments, so it is not recommended for use in environments with risks of intergranular corrosion. The chemical composition and performance characteristics of 302 stainless steel make it an ideal material for a variety of applications, including the manufacture of structural parts, weldments, non-magnetic components and cryogenic device components. Globally, there are multiple international corresponding brands to adapt to the standards and needs of different regions.


Product Parameters

Product Name

302 Stainless Steel Plate

Type

Plate

Thickness

0.3mm-200mm

Length

2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.

Width

40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.

Scope of Application

Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry,

agriculture and ship parts, food and beverage packaging,

Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.

Certificate

ISO, SGS, BV, etc.

Production Technology

Hot Rolling, Cold Rolling

Edge Processing

Edging, Trimming



Chemical Composition

C

Si

Mn

Cr

Ni

S

P

≤ 0.15

≤1.0

≤ 2.0

17.0~19.0

8.0~10.0

≤ 0.03

≤ 0.035



Mechanical Properties

Tensile Strength Kb (MPa)

Yield Strength σ0.2 (MPa)

Elongation D5 (%)

Hardness

≥ 520

≥ 205

≥ 40

≤ 187HB ;≤ 90HRB;≤ 200HV



Physical Performance

Density(g/cm³)

Modulus of Elasticity(Gpa)

Coefficient of Thermal Expansion(10-6/°C)

Coefficient of Thermal Conductivity(W/m*K)

Resistivity(μohm.in)

7.93

200

17.6

16.3

27.4



Surface Selection



Product Show
