Product Description
304 stainless steel, as one of the most commonly used types of stainless steel, is an outstanding material when it comes to corrosion resistance, heat resistance, low temperature strength and mechanical properties. In addition, it has exceptional hot-workability so it leaves no heat treatment hardening phenomenon.

Product Parameters

Product Name                           304 Stainless Steel Bar
TypeSteel Bar
Outer DiameterRound Bar4mm-500mm
Hexagon Bar18mm-57mm (11/16″ to 2-3/4″)
Square Bar18mm-47mm (11/16″ to 1-3/4″)
Flat Steel1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length1-6 meters, Length can be customized
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBlack, Bright Polished, Rough Turning, Mattness Surface Treatment, No. 4. BA, etc.
Scope of Application

Stainless steel bars are used in a variety of industries such as shipbuilding,Defense, Automotive, Textiles,

 Paper and pulp, Manufacturing, Cement,Heavy earthmoving equipment and construction, etc.



Chemical Composition

CSiMnCrNiSP
≤ 0.08≤1.0≤ 2.018.0～20.08.0～10.5≤ 0.03≤ 0.035



Mechanical Properties

Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
≥ 520≥ 205≥ 40≤ 187HB ;≤ 90HRB;≤ 200HV



Physical Performance

Density(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10-6/°C)Coefficient of Thermal Conductivity(W/m*K)Resistivity(ΜΩ. cm)
8.0319316.916.272

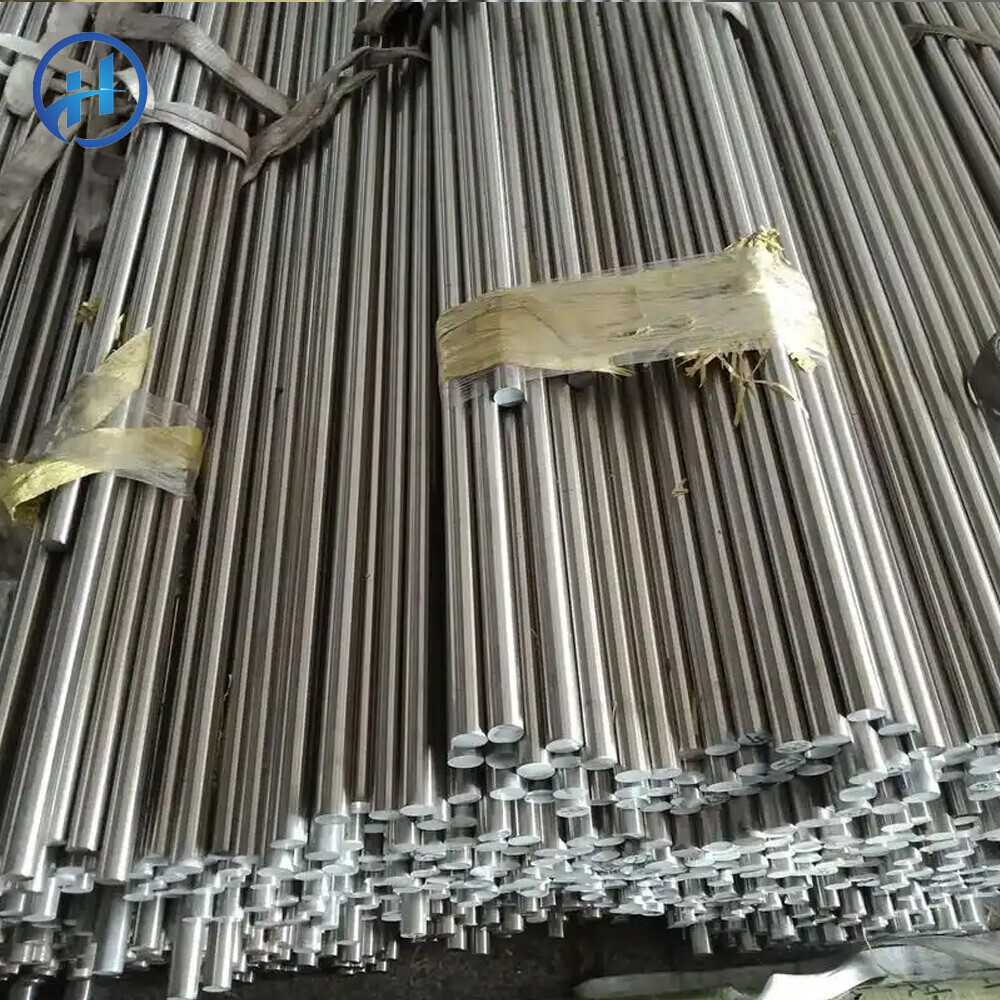

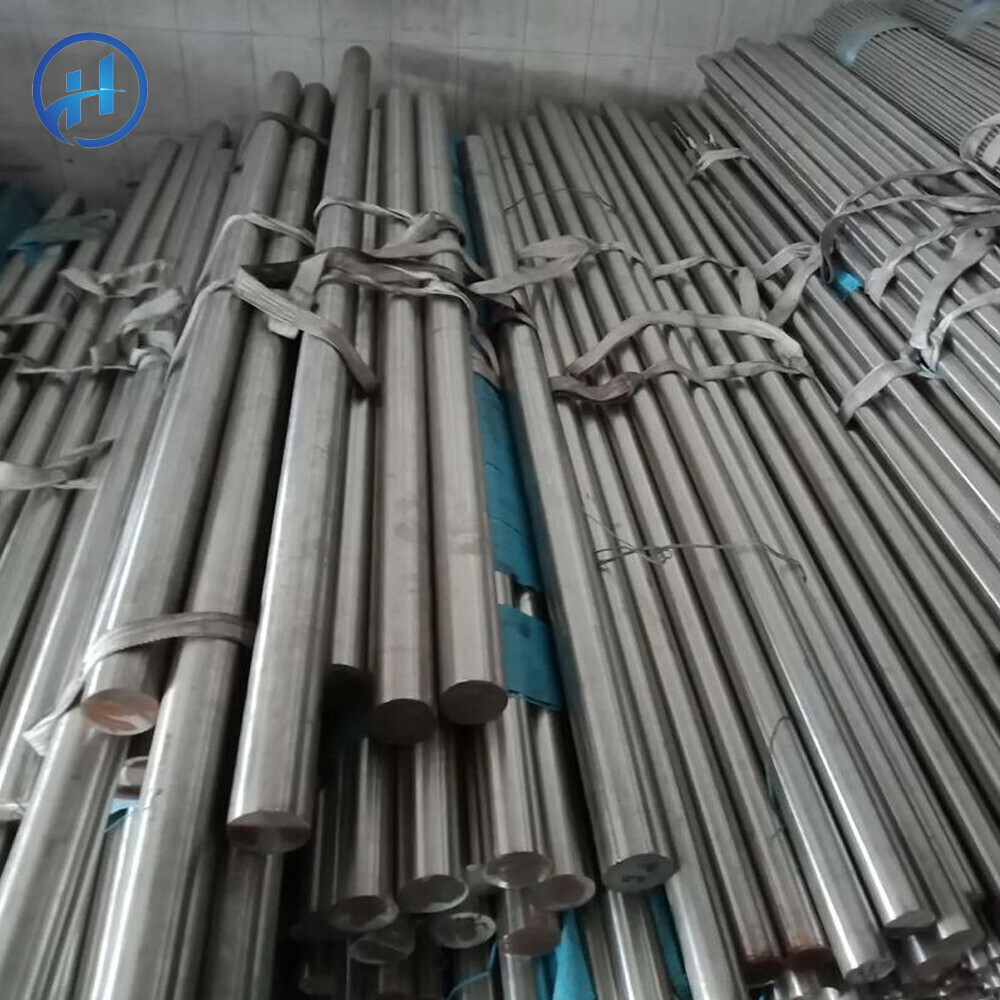

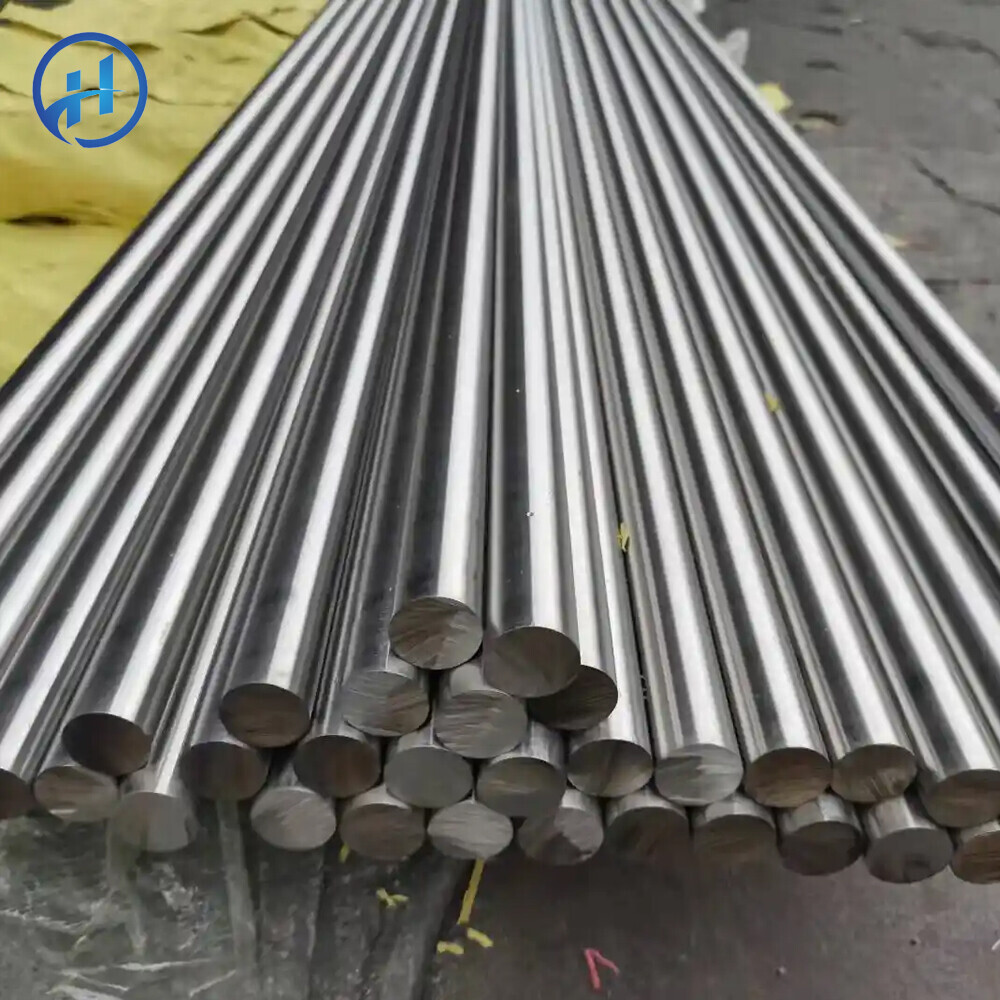

Product Show
