304L Stainless Steel Bar
Product Description
304L stainless steel bar is used where welding is involved, as a variant of 304 stainless steel bar. The lower carbon content greatly lowers the precipitation of carbides in the heat-affected zone close to the weld, and such precipitation is likely to lead to intergranular corrosion of stainless steel in certain settings. Basically, their is no need to anneal weld joints prior to using the completed metal form using 304L, saving time and effort. As a matter of fact, both 304 and 304L stainless steel bars can be used for many of the same applications. The differences are often minor enough that one isn’t considered massively more useful over the other. 304L stainless steel bars are commonly used as manufacturing parts in fields such as food processing equipment, building materials, automobile parts.

Product Parameters

Product Name                           304L Stainless Steel Bar
TypeSteel Bar
Outer DiameterRound Bar4mm-500mm
Hexagon Bar18mm-57mm (11/16″ to 2-3/4″)
Square Bar18mm-47mm (11/16″ to 1-3/4″)
Flat Steel1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length1-6 meters, Length can be customized
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBlack, Bright Polished, Rough Turning, Mattness Surface Treatment, No. 4. BA, etc.
Scope of Application

Stainless steel bars are used in a variety of industries such as shipbuilding,Defense, Automotive,

 Textiles, Paper and pulp, Manufacturing, Cement,Heavy earthmoving equipment and construction, etc.



Chemical Composition

CSiMnCrNiSP
≤ 0.03≤1.0≤ 2.018.0~20.08.0~12.0≤ 0.03≤ 0.035



Mechanical Properties

Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
≥ 520≥ 205≥ 40≤ 187HB ;≤ 90HRB;≤ 200HV



Physical Performance

Density(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10-6/°C)Coefficient of Thermal Conductivity(W/m*K)Resistivity(ΜΩ. cm)
8.0319316.916.272

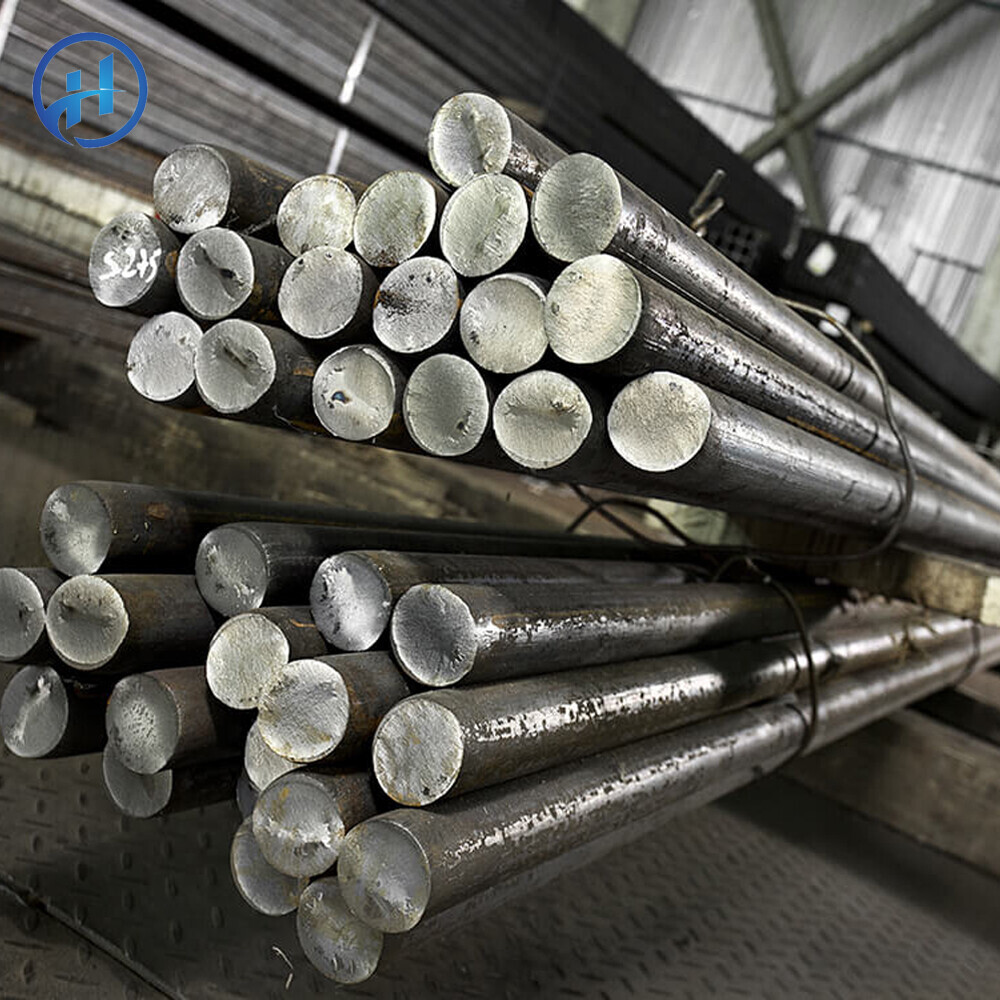

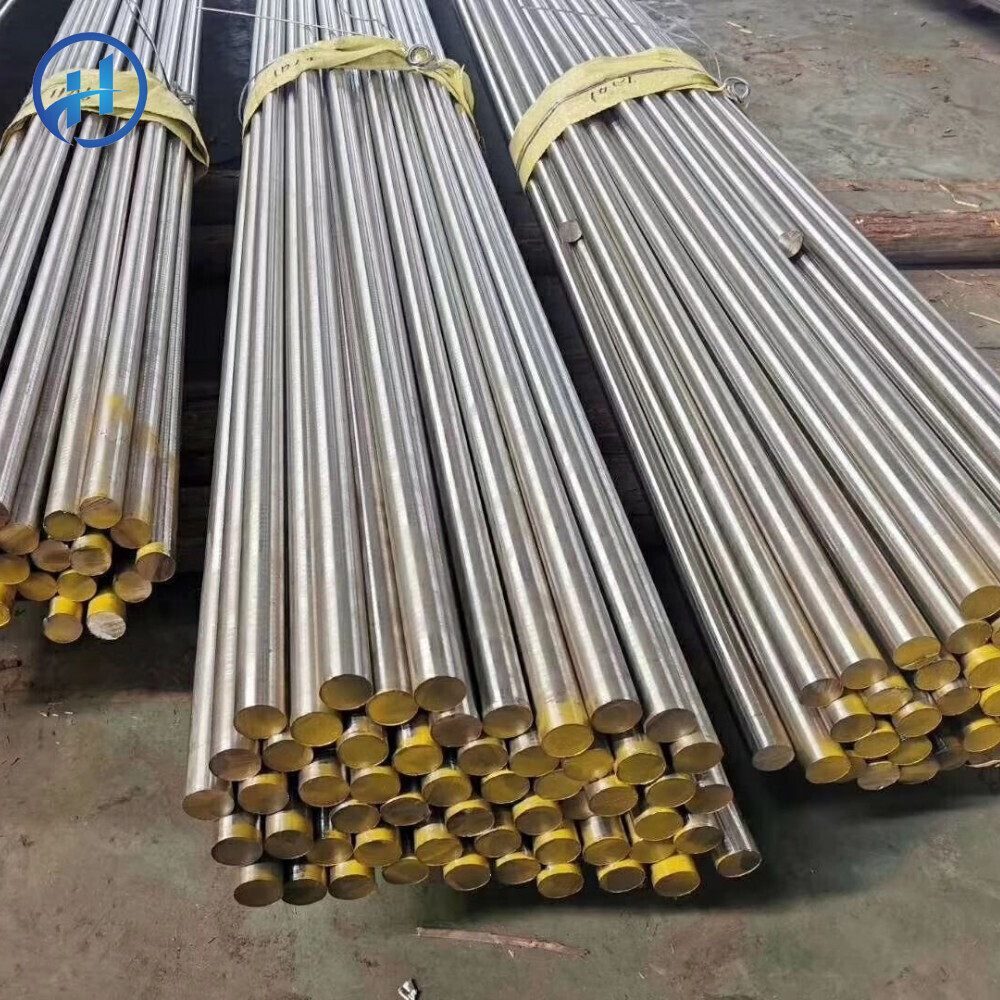

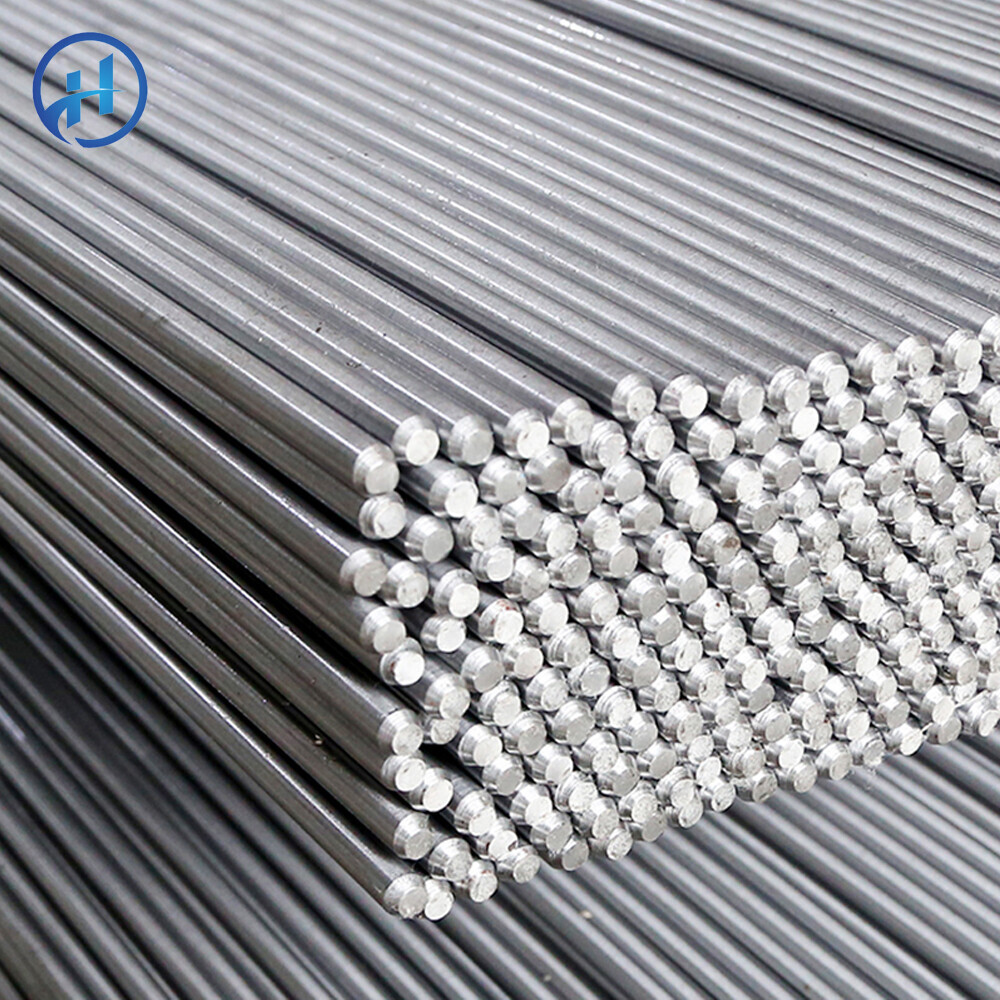

Product Show
