316 Stainless Steel Bar
Product Description
316 stainless steel bar has a number of convincing reasons to be used as a very practical option. Grade 316 is highly resistant to pitting and crevice corrosion in chloride environments as a standard molybdenum-bearing austenitic grade. So it is more commonly used in situations where higher corrosion resistance is asked. For example, in marine engineering, 316 stainless steel is often used to produce ship parts, subsea pipelines, offshore platforms and other facilities. Chemical industry is also where it is adopted. In addition, in the medical field, 316 stainless steel bars are sometimes used to manufacture medical devices and implants due to its excellent biocompatibility and corrosion resistance.

Product Parameters

Product Name                           316 Stainless Steel Bar
TypeSteel Bar
Outer DiameterRound Bar4mm-500mm
Hexagon Bar18mm-57mm (11/16″ to 2-3/4″)
Square Bar18mm-47mm (11/16″ to 1-3/4″)
Flat Steel1/2 "to 10", Thickness: 2mm-150mm, Can provide customized
Length1-6 meters, Length can be customized
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBlack, Bright Polished, Rough Turning, Mattness Surface Treatment, No. 4. BA, etc.
Scope of Application

Stainless steel bars are used in a variety of industries such as shipbuilding,Defense, Automotive,

 Textiles, Paper and pulp, Manufacturing, Cement,Heavy earthmoving equipment and construction, etc.



Chemical Composition

CSiMnCrNiSPMo
≤ 0.03≤ 0.75≤ 2.016.0~18.010.0~14.0≤ 0.03≤ 0.0452.0~3.0



Mechanical Properties

Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
≥480≥177≥ 40≤ 187HB;≤ 90HRB;≤ 200HV



Physical Performance

Density(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10-6/°C)Coefficient of Thermal Conductivity(W/m*K)Resistivity(ΜΩ. cm)
7.9919316.016.274

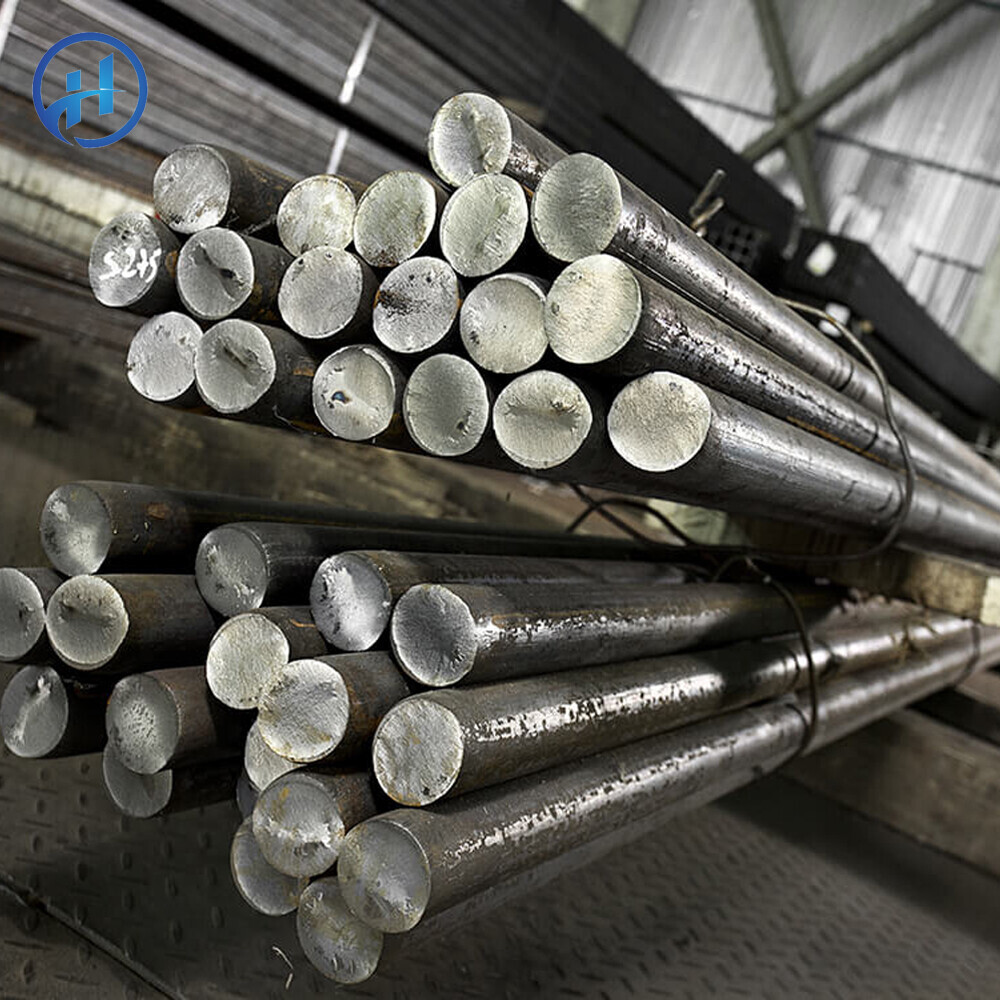

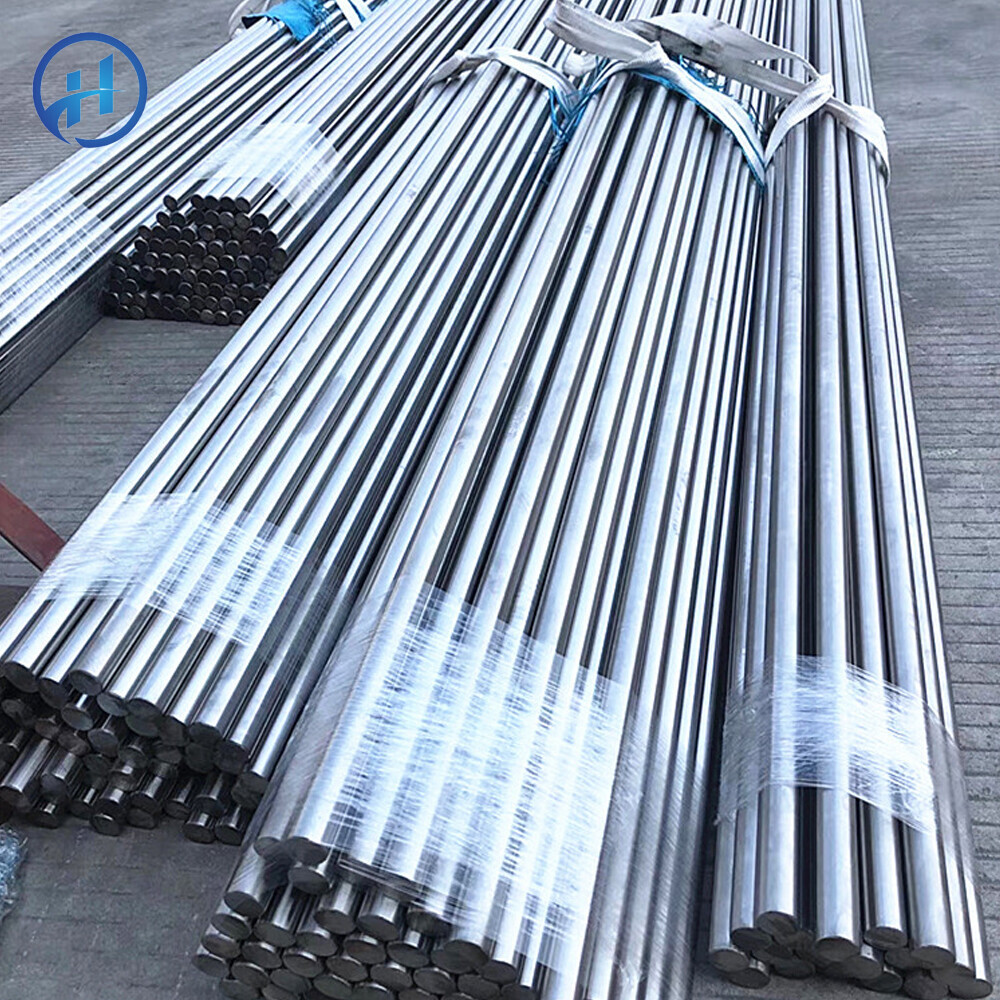

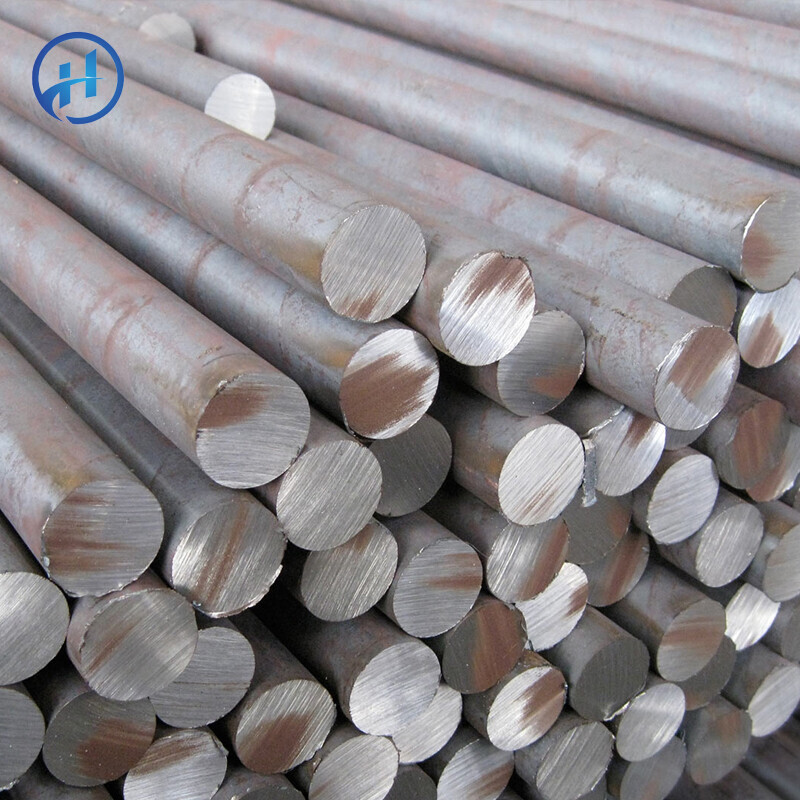

Product Show

不锈钢棒01 (2).jpg
