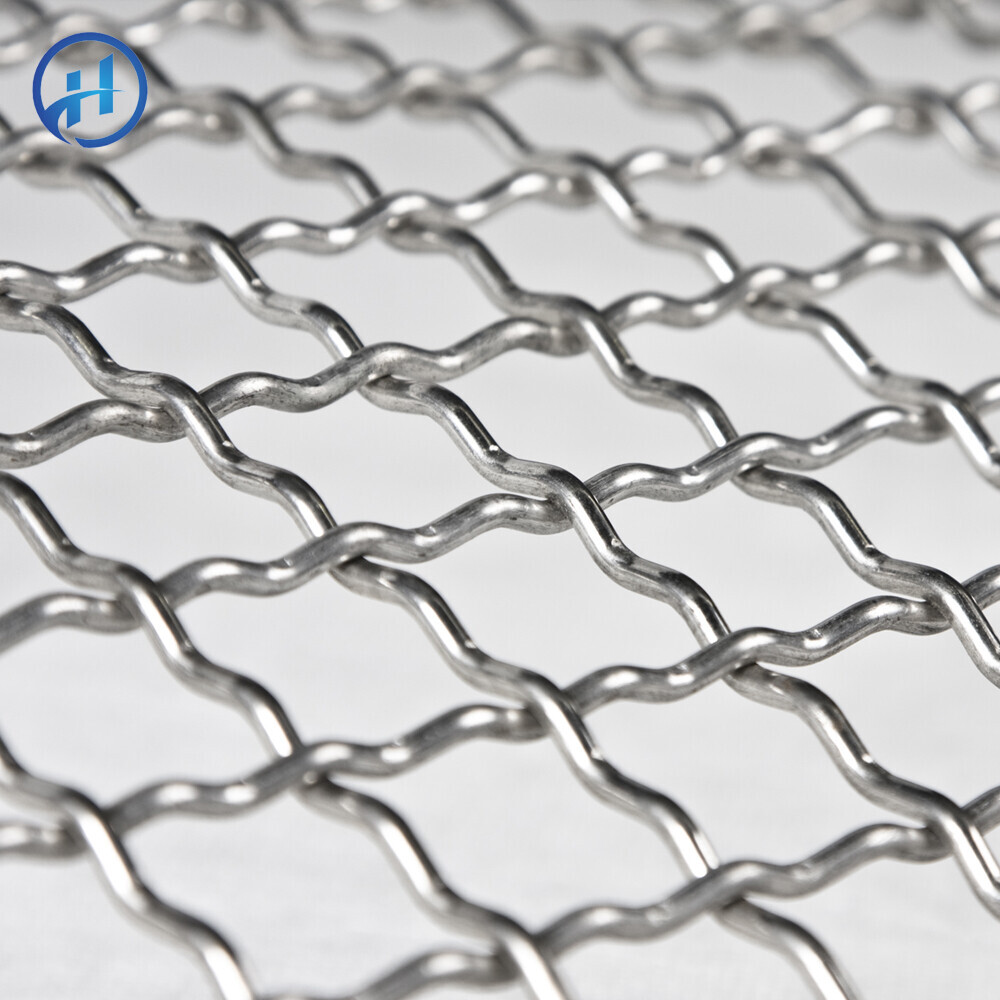

Stainless steel crimped mesh 301, 302, 304, 304L, 316, 316L, 321 can be customized

Product Description

Stainless steel crimped mesh is often used in industries with strict requirements on stability. For example, it is used in the food industry as a basket for food, and in the chemical industry for screening and filtering under acidic and alkaline conditions. It is used as a pickling net in the electroplating industry, a mud net in the petroleum industry, a decorative net in architectural decoration, and an oil-water separator in the automotive industry. Stainless steel crimped mesh is now widely used in mining, chemical, pharmaceutical, petroleum, metallurgy, machinery, protection, construction, handicrafts and other industries.

Material: stainless steel wire 301, 302, 304, 304L, 316, 316L, 321.

Weaving: crimp first and then braid, two-way bending, two-way wave separation bending, one-way bending Features: heat-resistant, acid-resistant, alkali-resistant, corrosion-resistant, wear-resistant, wide and solid structure.

Specifications: mesh size 1-24 mesh, wire diameter 40-600 wire, width 1 meter-5 meters. There are many types of crimped mesh that can be customized.

Features: woven with special technology, the mesh surface is flat, the structure is solid and durable, etc. It is an innovative product of pig cleaning equipment. The structure is stable, strong in impact resistance, wear-resistant, low in cost, the mesh remains uniform for a long time, and beautiful, etc.

Stainless Steel Crimped Wire Mesh for Sale

Product	Stainless Steel Crimped Wire Mesh
Raw Material	SS 201,304,304L, 316,316L, 430,ect stainless steel wire
Diameter	0.0008″-0.12″
Mesh	2-635mesh
Open Area	25-84.6
Roll Width	Max 240″
Roll Length	Max 2000′
Application	Filters ,sieve,chemical industry, mine industry, etc
Packaging	Inner kraft paper, outside plastic cloth, put into wooden pallet or case

Specification sheet of the plain weave woven wire cloth
Mesh/Inch	Absolute micron retention (μm)	Weight (kg/m2)	Cloth Thickness (mm)
80 × 300	32 - 36	0.98	0.25
80 × 400	36 - 45	0.82	0.23
50 × 250	56 - 63	1	0.32
50 × 280	71 - 75	1	0.32
40 × 200	75 - 80	1.3	0.4
30 × 150	80 - 100	1	0.5
24 × 110	100 - 112	2.5	0.76
22 × 140	140 - 170	2.1	0.66
20 × 150	160 - 180	1.55	0.5
20 × 150	170 - 190	1.6	0.55
18 × 100	200 - 210	2.05	0.69
14 × 110	220 - 240	2.15	0.72
12 × 95	240 - 260	2.3	0.79
14 × 88	280 - 300	3.15	0.76
10 × 90	270 - 290	2.5	0.93
12 × 64	280 - 300	4.1	1.21
10 × 70	315 - 335	3	1.04
8 × 85	330 - 350	2.5	0.93

Specification of the twill weave stainless steel wire cloth.
Mesh/Inch	Absolute micron retention (μm)	Weight (kg/m2)	Cloth Thickness (mm)
510 × 3600	4-5	0.3	0.06
400 × 2800	5-6	0.36	0.06
375 × 2300	6-7	0.39	0.08
325 × 2300	7-8	0.47	0.09
260 × 1550	8-10	0.68	0.12
250 × 1400	11-12	0.68	0.12
200 × 1400	11-13	0.75	0.14
130 × 700	13 - 15	1.6	0.28
200 × 1120	15 - 17	0.95	0.16
165 × 1400	15 - 18	0.7	0.15
165 × 1100	20 - 21	0.9	0.16
80 × 700	34 - 36	1.2	0.26
40 × 560	71 - 80	1.7	0.39
30 × 360	95 - 106	2.6	0.54
30 × 250	100 - 112	3.2	0.65
20 × 260	110 - 120	3.1	0.67
28 × 560	106 - 112	1.95	0.46
24 × 300	112 - 118	2.85	0.63

Note: Special size and specification can be customized.
